Record GraphQL traffic

proxymock records GraphQL the way it records any HTTP traffic: it sits in front of your server for the requests clients send it, and between your app and the APIs it calls for the requests it sends. Nothing about the server or the client changes beyond the address it uses.

Record your GraphQL server​

Start your server under the recorder, tell proxymock which port it listens on, and send requests to proxymock's inbound port, 4143, instead of the server's:

proxymock record --app-port 8080 -- ./your-server

In a second terminal, drive the server the way you want to test it: your client app, an end-to-end suite, or a script:

curl -s http://localhost:4143/graphql -H 'Content-Type: application/json' \
  -d '{"query":"mutation CreateUser($email: String!) { createUser(input: {email: $email, plan: \"pro\"}) { id email } }","operationName":"CreateUser","variables":{"email":"ada@example.com"}}'

Stop the recorder with Ctrl-C. Each request is one file under proxymock/recorded-<timestamp>/localhost/, recorded as inbound traffic, ready to replay as a test.

Record the GraphQL API your app calls​

To record the requests your app sends, start the app under the recorder. proxymock sets the proxy environment variables for the app, so a client that honors them is recorded with no other change:

proxymock record -- ./your-app

Each request lands under a directory named after the API's host, recorded as outbound traffic, ready to serve as a mock.

Some clients never send localhost through a proxy. Go's standard HTTP client is one. For an API on your own machine, give proxymock a port in front of it with --map and point the app at that port instead:

proxymock record --map 18081=http://localhost:18080 -- ./your-app   # the app calls http://localhost:18081/graphql

Requests through a mapped port are recorded under localhost-<port>, here localhost-18080, so they never mix with your server's inbound traffic.

What a recorded call holds​

A GraphQL request is stored as a JSON representation of its parsed document, with the envelope's operationName, variables and extensions alongside it:

{
  "operationName": "CreateUser",
  "query": { "Kind": "Document", "Definitions": [ ... ] },
  "variables": { "email": "ada@example.com" }
}

This form is verbose, and you rarely need to read it: proxymock web lists what a transform can change, and the Raw tab shows the request as JSON with the query as text. Storing the parsed document is what lets proxymock match, edit and replay a request by its meaning. When the request is replayed, the document is printed back into query text, so what leaves proxymock is an ordinary GraphQL request.

The response is stored exactly as the server sent it. A GraphQL response is plain JSON, and errors ride in its errors array, usually with status 200.

Some requests to a /graphql path are kept exactly as they were sent, with no parsed document:

RequestHow it is kept
Automatic persisted query, a hash in extensions.persistedQuery and no query textAs sent, and replayed byte for byte. variables can still be edited.
Query in the URL, GET /graphql?query=...As sent. It matches and replays on its query parameters.
Batched operations, a JSON array of requestsAs sent, as plain JSON.
Content-Type: application/graphql, the query text as the bodyAs sent.

Read the recording​

Open the recording with proxymock web:

proxymock web --in proxymock/recorded-<timestamp>

Each GraphQL call appears in the Requests list as POST /graphql, the way it reached the server, and its Info tab shows its tech as GraphQL. Select a call and open Request → Body. In place of the parsed document, proxymock web lists what the request does and every value a transform can change:

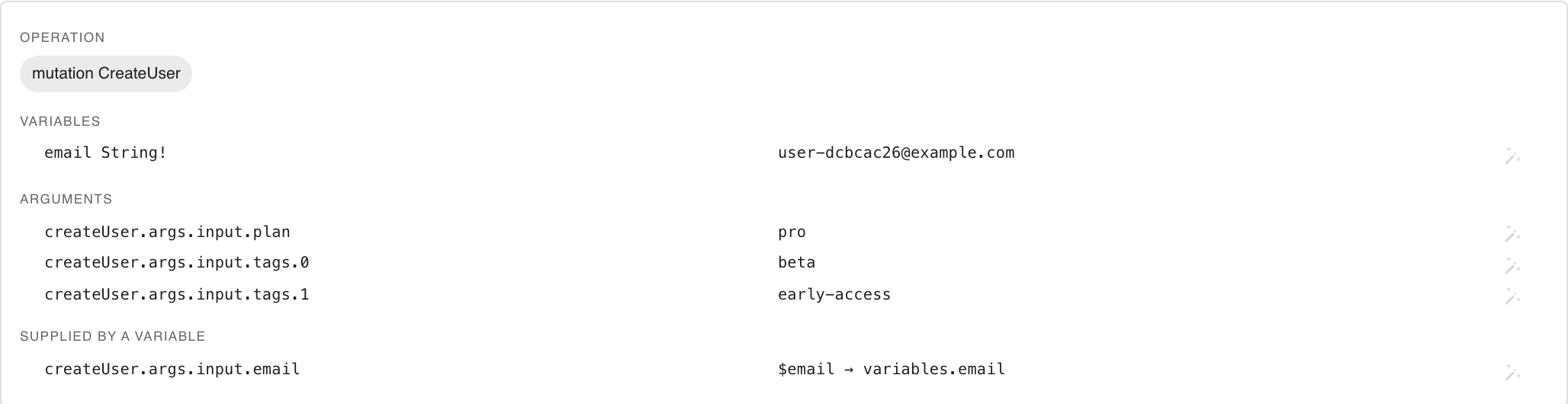

The GraphQL panel in proxymock web on a CreateUser mutation recorded from the graphql-demo app: the Operation group shows a mutation CreateUser chip, Variables lists email String! with its value, Arguments lists createUser.args.input.plan as pro and createUser.args.input.tags.0 and .1 as beta and early-access, and Supplied by a variable lists createUser.args.input.email as $email pointing at variables.email. Each value row has a transform button.

  • Operation has a chip for each operation and named fragment the document defines. The operation this request runs is filled in. A document can define operations it does not run.
  • Variables lists each variable with its declared type and recorded value.
  • Arguments lists each literal written into the query, by its semantic path.
  • Supplied by a variable lists the arguments a variable feeds, pointing at the variables. path where the value can actually change.

The button on each row opens the transform chooser, which saves a transform for that value into the Field Transforms blueprint. Editing GraphQL requests describes the panel and the chooser in full.

Operations in mock and replay​

When proxymock mock or proxymock replay loads a recording, it labels each GraphQL call with its operation instead of the URL: the location becomes the operation name and the command becomes the operation type. That is how the replay report lists results:

│ ENDPOINT             │ METHOD      │
│ CreateUser           │ mutation    │
│ Dashboard,UserFields │ query       │
│ GetPlans,GetUser     │ query,query │
│ Session              │ query       │

The label lists every operation and named fragment the document defines, whichever one the request runs. Above, Dashboard,UserFields is an operation that spreads a fragment, and GetPlans,GetUser is a document holding two operations, recorded twice with a different operationName each time. An anonymous operation is labeled by the root fields it selects. Persisted queries and the other requests kept as sent keep /graphql and their HTTP method.
